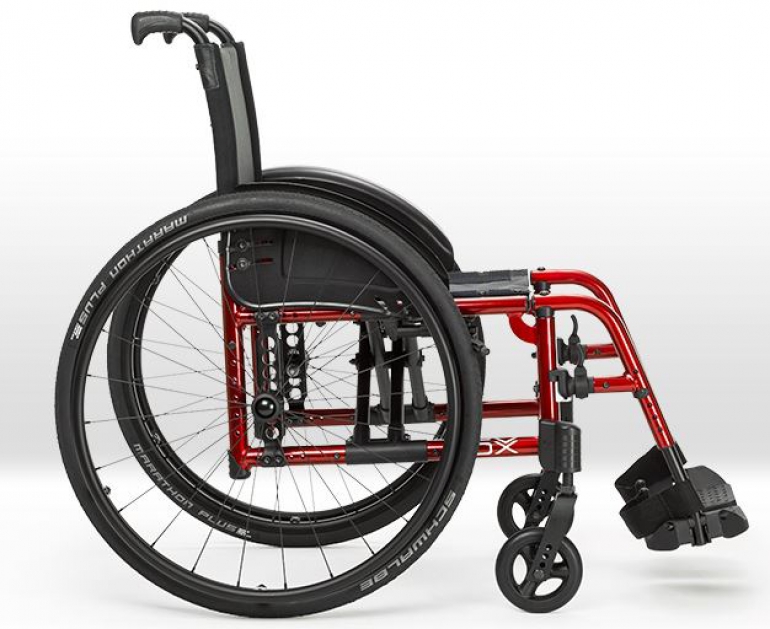

Catalyst 5Vx lightweight wheelchair side 2

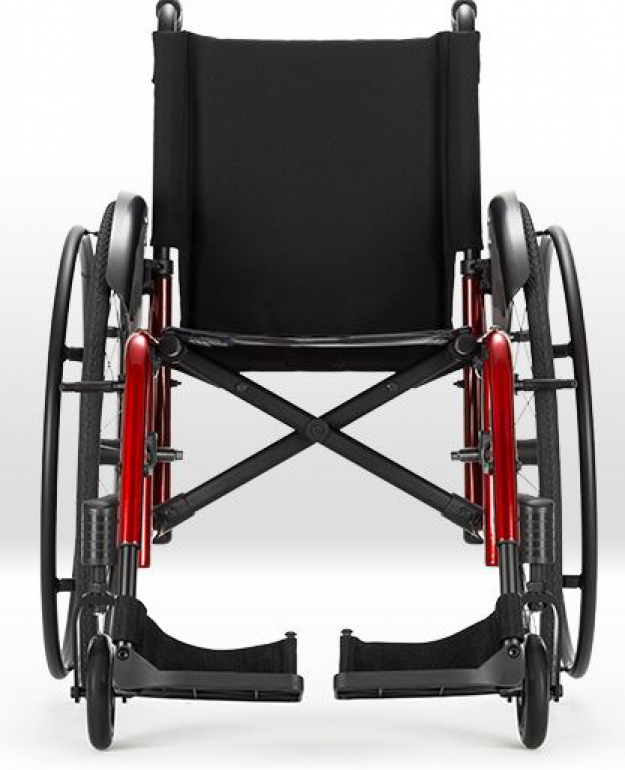

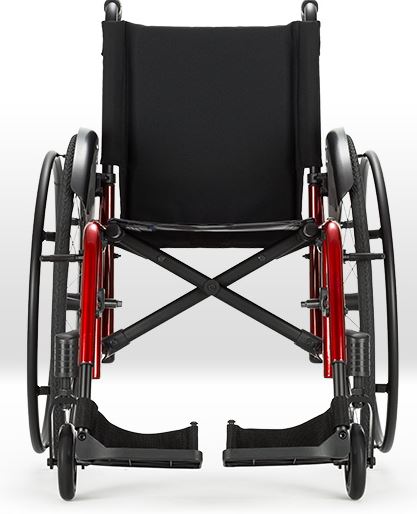

Catalyst 5Vx lightweight wheelchair front

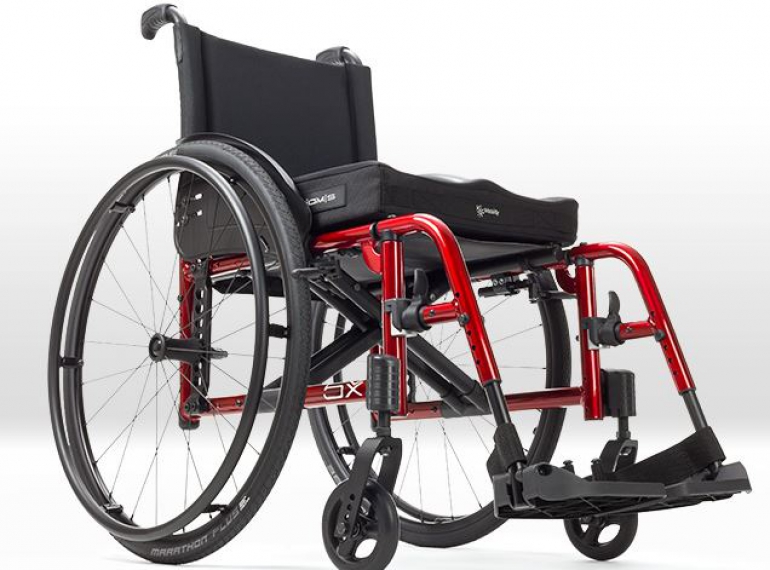

Catalyst 5Vx lightweight wheelchair side 1

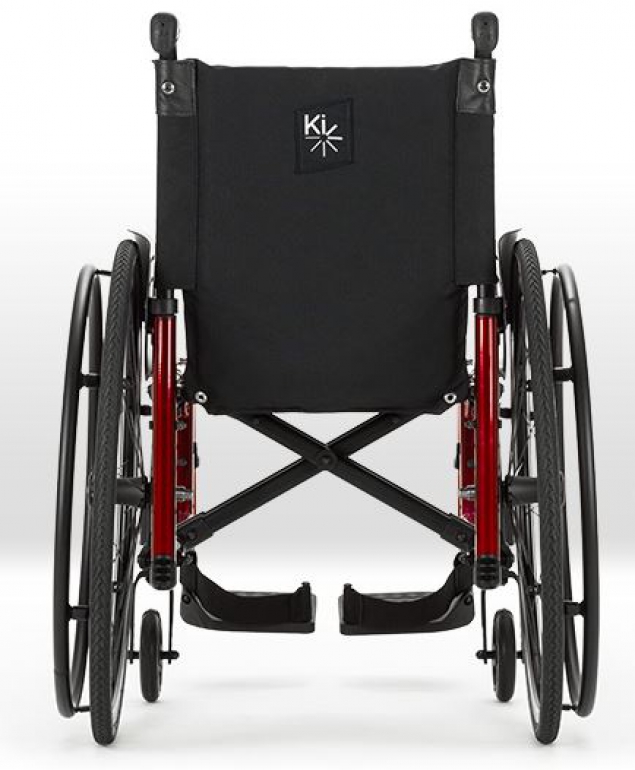

Catalyst 5Vx lightweight wheelchair rear

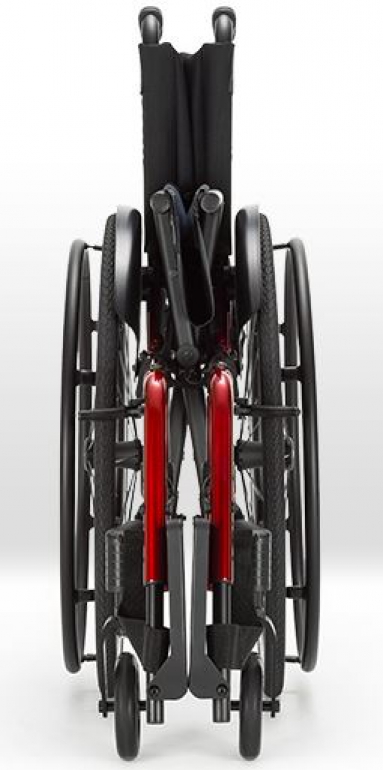

Catalyst 5Vx lightweight wheelchair folded

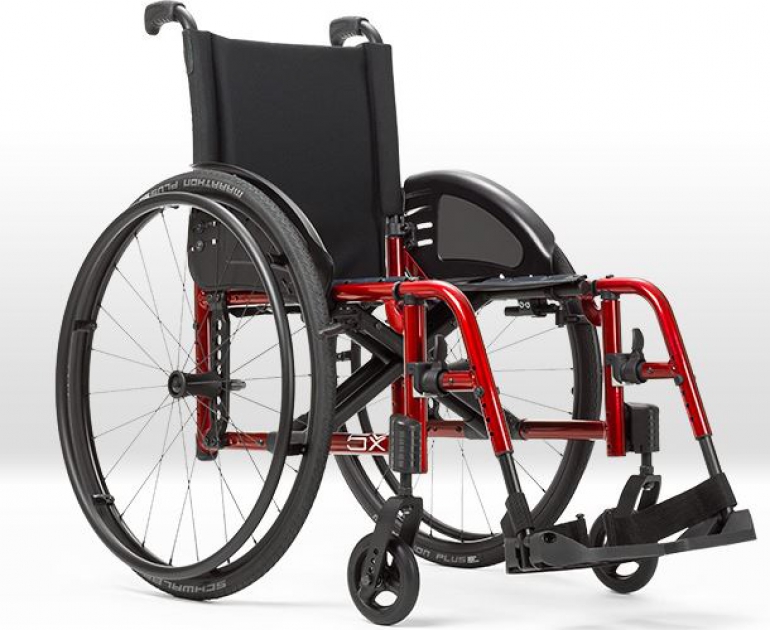

Catalyst 5Vx lightweight wheelchair camber
Catalyst 5Vx lightweight wheelchair side 2 thumbnail
Catalyst 5Vx lightweight wheelchair front thumbnail
Catalyst 5Vx lightweight wheelchair side 1 thumbnail
Catalyst 5Vx lightweight wheelchair rear thumbnail
Catalyst 5Vx lightweight wheelchair folded thumbnail
Catalyst 5Vx lightweight wheelchair camber thumbnail
×

Catalyst 5Vx wheelchair- Ki Mobility

The Catalyst DifferenceCatalyst 5Vx takes advantage of all of the "Catalyst Difference" design features to allow you to fit, adjust and ride with confidence.  A defining characteristic...

Product Order Request

Product Unavailable!

Please select a different set of options

Details & Specs for Catalyst 5Vx wheelchair- Ki Mobility

The Catalyst Difference

Catalyst 5Vx takes advantage of all of the "Catalyst Difference" design features to allow you to fit, adjust and ride with confidence.  A defining characteristic of each chair is its axle plate which we will highlight below.

Better Adjustment

Center of gravity adjustment and ride performance go hand in hand. The redesigned axle plate and rear frame give you 2” (5.08 cm) of center of gravity adjustment in 1/2” (1.27 cm) increments and 5” (12.7 cm) of rear seat height adjustment over 7 positions. Find your fit, ease your propulsion and optimize the ride you’ve come to expect with Catalyst.

Adjustable Camber

The NEW Adjustable Camber comes at no charge, giving you up to 4° of camber in 1” increments. A simple adjustment and convenient option provides you with the parts up front so you have everything you need when adjusting or fine tuning camber later.

Style

Personalizing your Catalyst 5VX begins with you. Pick your greatest shade then highlight your look with our new anodizing package, options and accessories. With thousands of color combinations to choose from, be bold. Be you.

300 lb. Standard Weight Capacity - NEW!

Catalyst 5Vx is one of the lightest and strongest folding chairs on the market with its NEW 300 lb. standard weight capacity! A heavy duty option is also available.

Transport Weight- Footrests and rear wheels remove 13.9 lbs.
Standard Weight 24 lbs.
Seat Width 14-22 inches
Seat Depth 14-20 inches
Front Seat Height 13.5 - 21 inches
Rear Seat Height 11.5 - 20 inches
Standard Weight Capacity 300 lbs.
HD Model Weight Capacity 350 lbs.
Top Frame Tubing Size 1 inch
Bottom Frame Tubing Size 1.1.25 inches
Axle Positions Available 7
Center of Gravity Adjustment Increments 0.5 inch
Center of Gravity Adjustment Range 2 inches
Camber 1 degree increments from 1-4 degrees
Frame Material 7000 Series Aluminum
Transit Approved Yes
